BigQuery

Logflare natively supports the storage of log events to BigQuery. Ingested logs are streamed into BigQuery, and each source is mapped to a BigQuery table.

Behavior and Configuration

On table initialization, Logflare sets optimal configuration automatically to ensure that tables are optimized.

Ingestion

Ingested events are streamed into BigQuery. This allows us to maximize the throughput into BigQuery, allowing Logflare to handle large volumes of events.

note

Due to this streaming requirement, BYOB GCP projects must have billing enabled.

Partitioning and Retention

All tables are partitioned by the timestamp field, and are partitioned by day. This means that all queries across the BigQuery table must have a filter over the timestamp field.

Backend Time-To-Live (TTL) is the source setting which configures a BigQuery table's partition expiry. This setting can be configured through Source > Edit > Backend TTL.

For metered plan users, if the TTL is not set, the BigQuery table will default to 7 days.

For users on the Free plan, the maximum retention is 3 days.

Deep Dive: Table Partitioning

Table partitioning effectively splits a BigQuery table into many smaller tables. When using partitioned tables, BigQuery storage is effectively half priced when the partitioned table is older than 90 days. When a table has not been modified in 90 days, BigQuery will only charge half the normal rate.

When partitioned over time (which Logflare manages automatically), we are able to benefit from the discount by separating out the older and less-queried smaller tables, reducing total effective storage costs.

Furthermore, by partitioning a table, we can then limit queries to scan data across only selected partitioned column/tables, saving you more money and making your queries even more responsive.

However, the caveat of this is that BigQuery's streaming buffer is not include in partitioned queries by default. This would affect queries across the partitioned tables and would result in a lag time before the data will become visible in the partitioned tables.

Should you need to query against the streaming buffer directly, you can use the following query (source) to do so:

SELECT fields FROM `dataset.partitioned_table_name` WHERE _PARTITIONTIME IS NULL

You can read more about partitioned tables in the official Google Cloud documentation.

Logflare-Managed BigQuery

Logflare free and metered users will not need to manage BigQuery settings and permissions, and will have access to their data via their registered e-mail address.

The differences in BigQuery behavior for the two plans are as follows:

Aspect	Free	Metered	BYOB
Schema Fields	Up to 50	Up to 500	Up to 500
Retention (Backend TTL)	Up to 3 Days	Up to 90 days	Unlimited
Events	12,960,000/month	Unlimited	Unlimited

Bring Your Own Backend (BYOB)

You can also Bring Your Own Backend by allowing Logflare to manage your GCP project's BigQuery.

This allows you to retain data beyond the metered plan's 90 days, as well as integrating the BigQuery tables managed by Logflare into your BigQuery-backend data warehouse.

Furthermore, you will have complete control over storage and querying costs as you will be billed directly by Google Cloud, while Logflare will only handle the ingestion pipeline.

Setting Up Your Own BigQuery Backend

Enable Billing for Project

Enable a Google Cloud Platform billing account with payment information or we won't be able to insert into your BigQuery table!

Step 1: Navigate to IAM and Add a Member

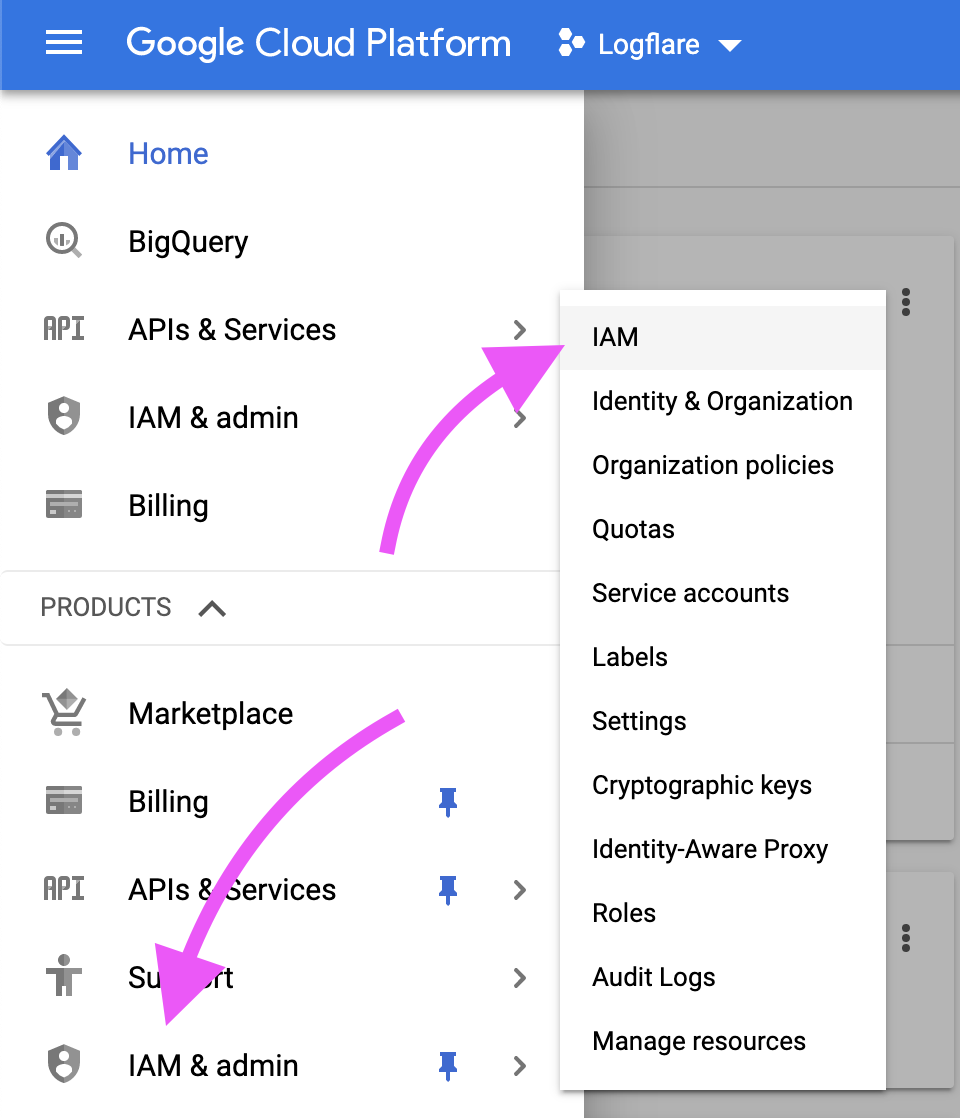

Navigate to Google Cloud Platform > IAM & admin > IAM

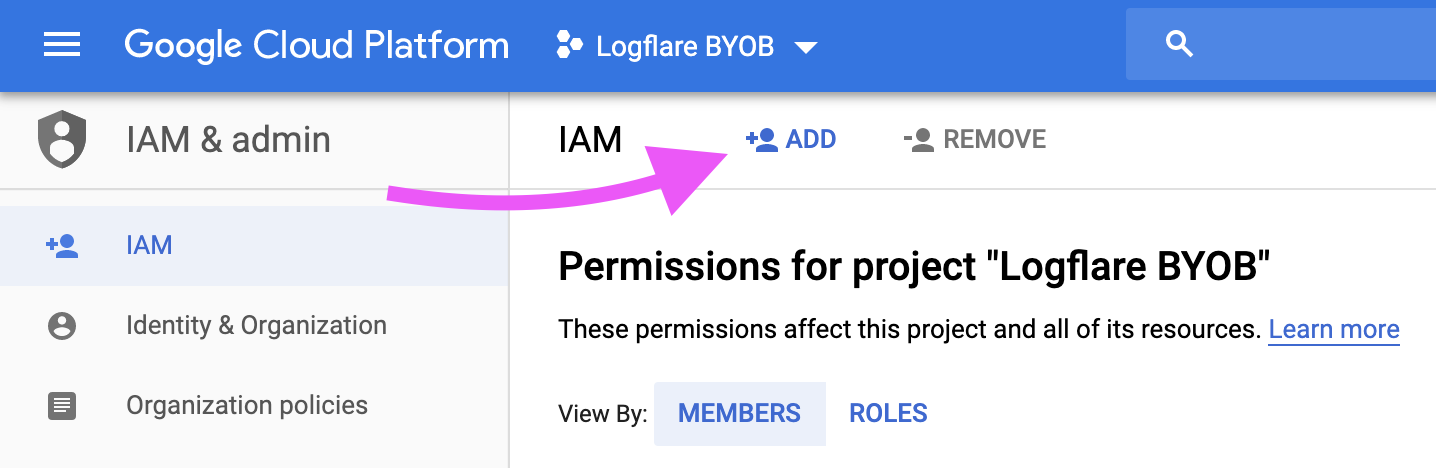

Then, click on the Add button.

Step 2: Add the Logflare Service Account

The Logflare service account is:

logflare@logflare-232118.iam.gserviceaccount.com

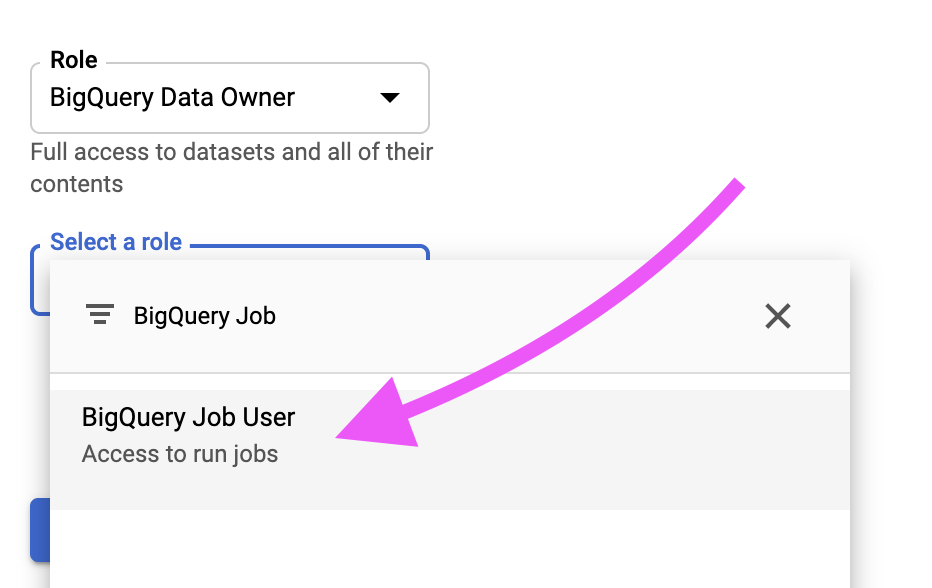

Assign BigQuery Data Owner and BigQuery Job User permissions to the Logflare service account.

Step 3: Update Account Settings in Logflare

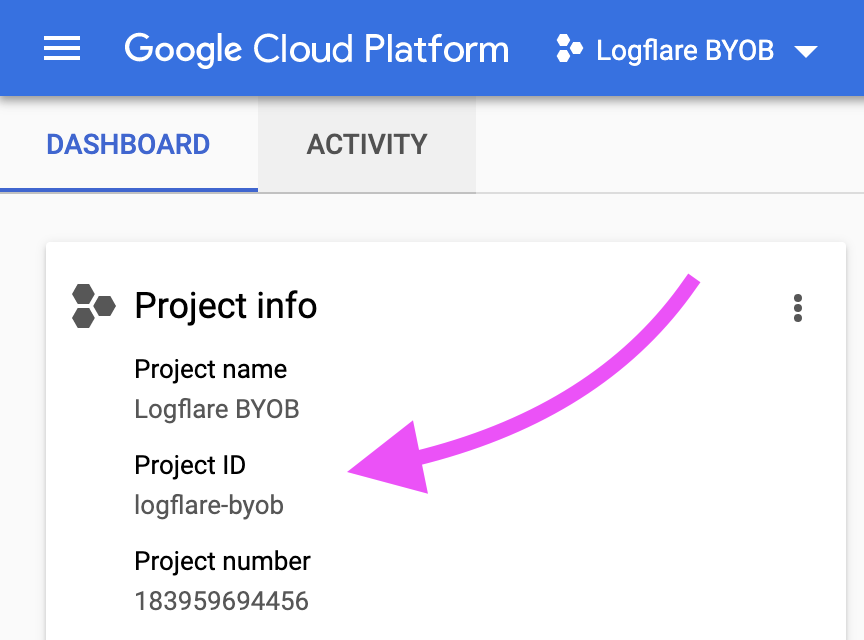

Find the GCP project ID in the dashboard

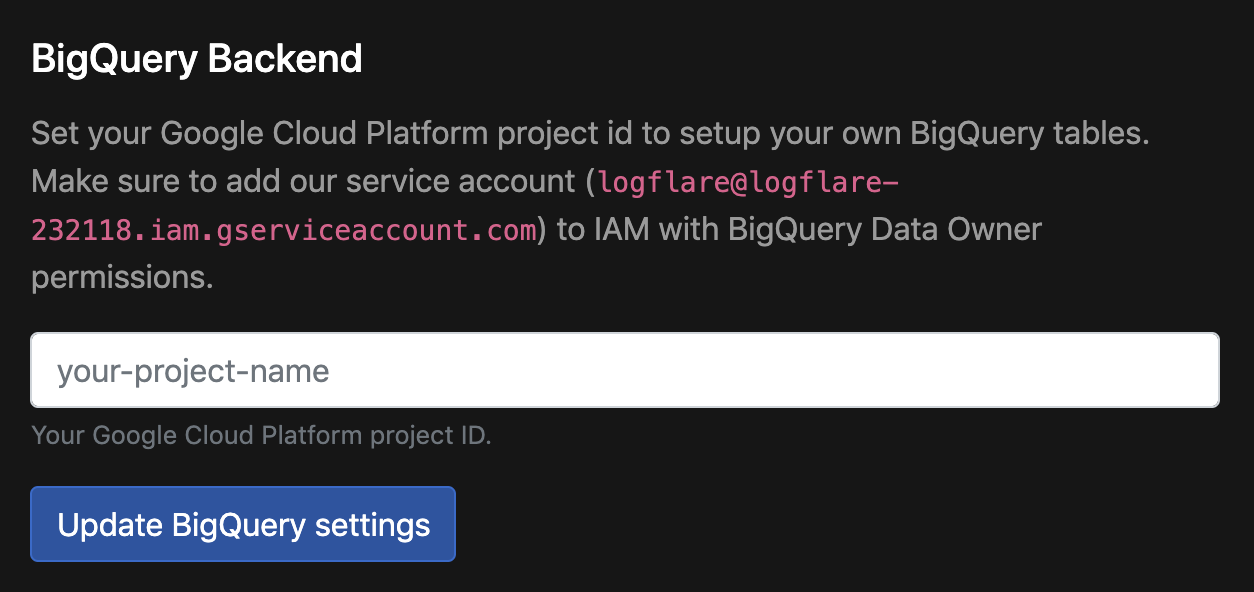

Navigate to the account preferences and add in the GCP project ID.

Step 4 (Optional): Update Source Settings in Logflare

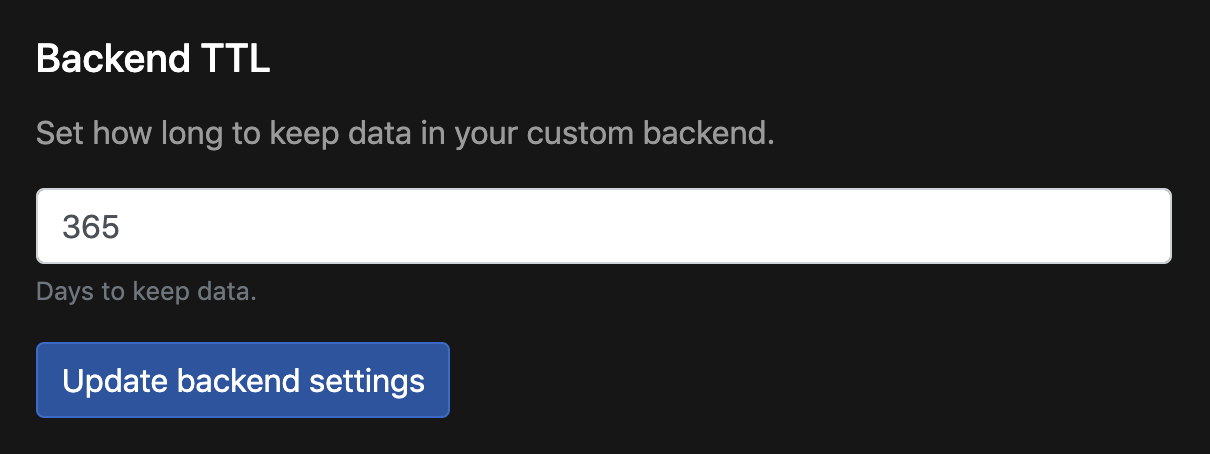

You can also optionally update your sources' TTL to tweak how long you want to retain log events in BigQuery.

note

The steps for setting up self-hosted Logflare requires different BigQuery configurations, please refer to the self-hosting documentation for more details.

Querying in BigQuery

You can directly execute SQL queries in BigQuery instead of through the Logflare UI. This would be helpful for generating reports that require aggregations, or to perform queries across multiple BigQuery tables.

When referencing Logflare-managed BigQuery tables, you will need to reference the table by the source's UUID. If you are crafting the query within Logflare Endpoints, the table name resolution is handled automatically for you.

Unnesting Repeated Records

Nested columns are represeted as repeated RECORDs in BigQuery. To query inside a nested record you must UNNEST it like so:

SELECT timestamp, req.url, h.cf_cache_status
FROM `your_project_id.your_dataset_name.your_table_name` t
CROSS JOIN UNNEST(t.metadata) m
CROSS JOIN UNNEST(m.request) req
CROSS JOIN UNNEST(m.response) resp
CROSS JOIN UNNEST(resp.headers) h
WHERE DATE(timestamp) = "2019-05-09"
ORDER BY timestamp DESC
LIMIT 10

Troubleshooting

Ingestion: BigQuery Streaming Insert Error

Logflare uses BigQuery's streaming insert API to provide ingestion functionality.

If you are on the BYOB plan and have configured Logflare to ingest into BigQuery using the above steps, you may receive this error:

Access Denied: BigQuery BigQuery: Streaming insert is not allowed in the free tier

To resolve this error, you will need enable billing for your project through the GCP console.

Data Studio (Looker) Integration

When you log into the Logflare service with your Google account, we will automatically provide you access to the underlying Big Query tables associated with all your sources. This allows you to create visualizations and reports in Data Studio.

Looker Studio has extensive documentation and tutorials to help you learn more.

Setup Steps

Step 1: Open Data Studio and Add a Data Source

Step 2: Select the BigQuery Connector

Step 3: Find your Logflare Source

The BigQuery table name will match the ID of the source as per the dashboard.

Step 4: Select Partitioned Table Time Dimension

Selecting this option will make your reports faster and let you effectively use the date range picker in a report. It will also help with ongoing BigQuery costs associated with queries.

It may take up to 15 minutes for ingested data to flow into Data Studio immediately after report creation.

Step 5: Connect to the Data

Step 6: Set Timestamp Type to Date Hour (Optional)

This allows you to see more fine grained fluctuations in your data.

You can also mix hourly and daily data in your reports using duplicate on a field and configuring it to either Date Hour or Date.

Step 7: Create the Report and Configure Settings

Click on "Create Report" to finialize your initial report.

You can also configure the report further by navigating to Report Settings

You should also configure the default data source date range to optimize your query cost.

Step 8: Create Your First Charts
